Product Video
Automatic Drug Identification Check of Divided Tablets

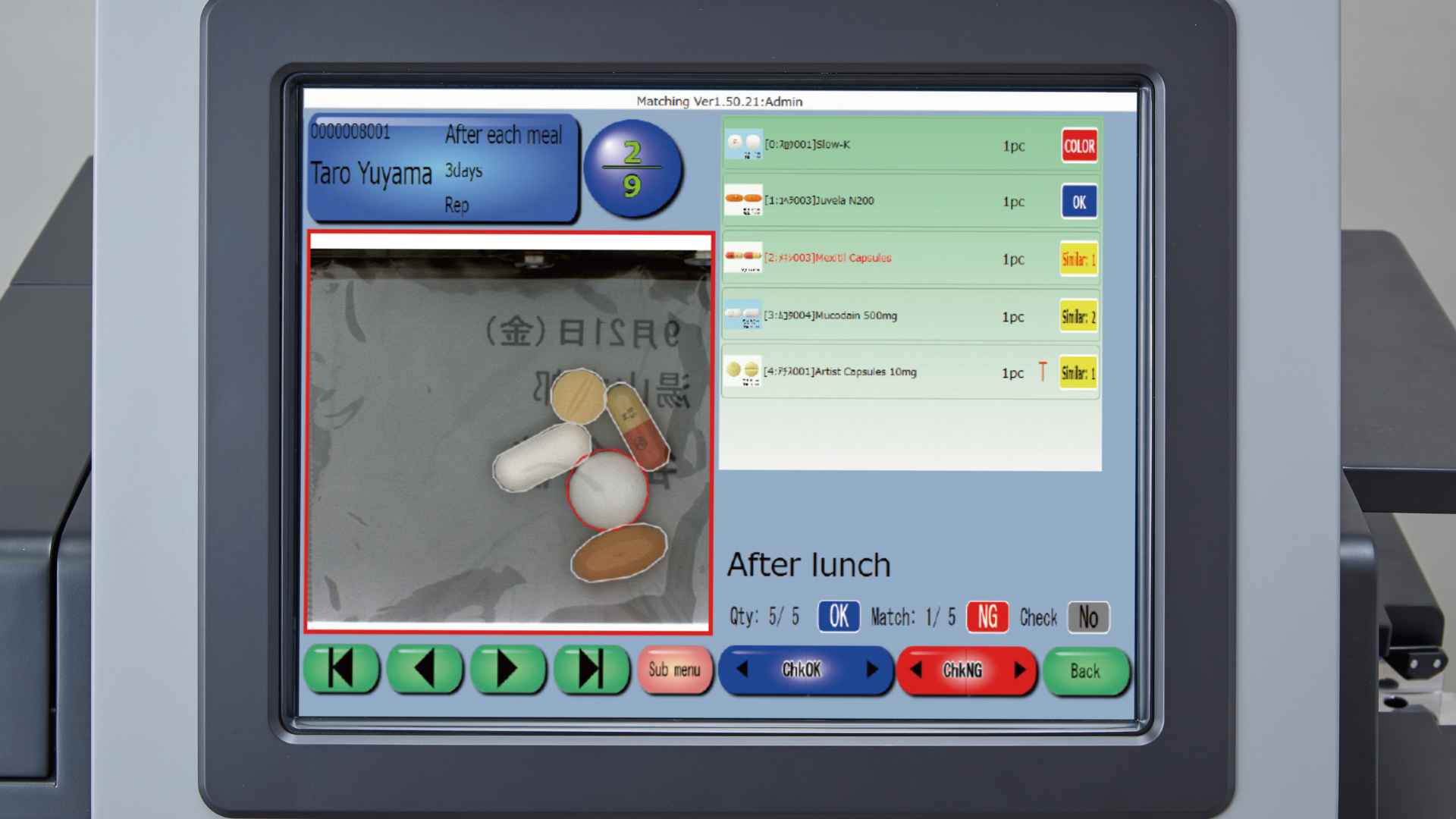

TabSight-S automatically identifies drugs based on three factors: quantity, shape, and color tone, using image capturing via sophisticated camera and image recognition technology. It also checks for foreign substances such as aluminum foil on PTP sheets, bringing peace of mind and comfort to the inspection process.

High-speed Checks that do not Interrupt Dispensing Operations
TabSight-S achieves high-speed matching of approximately 1 second per package, making it suitable for facilities with a high volume of long-term prescriptions. In addition, you can choose from three verification speeds: “high-speed,” “semi-high-speed,” and “standard.” You can set it to suit your operational needs, such as using “high-speed” for high processing volume or “standard” when you want to ensure verification is performed reliably even with a single pharmacist.

Transparent tablets or 1/4 tablets can be processed
TabSight-S can identify transparent tablets or 1/4 tablets, a function not available in existing models. As the number of drug types recognized by TabSight-S increases, users can check the pouches more easily and speedily.
*With TabSight-S, some types of transparent tablets can be identified.

Spec
- Product Name
- Packed-Tablet Inspection Machine TabSight-S
- Model
- YS-TPMS-01
- External Dimensions
- Main unit:
810mm (Width)×510mm (Depth)×515mm (Height)
When installed on the dedicated stand:
845mm (Width)×645mm (Depth)×1,355mm (Height)
- Weight
- Main unit: Approx. 60kg
Dedicated stand: Approx. 25kg
- Power Supply
- AC220V±10V(50/60Hz)
- Power Consumption
- 300VA(Max.)
- Verification Contents
- Tablet quantity per package check, color/tone check,and shape check.
- Evaluation Speed
- High-speed mode: Approx. 1.0 sec per package
Semi-high speed/standard mode: Approx. 1.2 secs per package
*In case of 5 tablets of 5 different types per package.
*Speed times may vary from the above depending on the quantity and condition of tablets in a package.
- Tablets Per Package
- 25 tablets of 25 different types (Max.)
- Verification-Compatible Tablets
- Tablets of 3mm×3mm or larger
*Compatible with 1/2 tablets, 1/4 tablets and transparent medications.
- Compatible Medication Package Paper/Size
- Dedicated TabSight cellophane-polyester 70W (double-folded) type plain/white band/solid white (name printing unavailable), 60-90mm wide
- Compatible Printing Ribbon
- Black single-color ribbon
- Option
- Dedicated stand, remote inspection device etc.
